[Scaramanga]

Salut et bienvenue sur le forum de Gravure-News,

Code: Tout sélectionner

Nero version: 6.0.0.19

met vite à jour Nero, cette version est très buggée.

[fessal]

Bonjour et merci de cette réactivité!

Malheureusement le problème de gravure se pose toujours, j'ai installé la version 7 de NERO et idem même problème de gravure sauf que le message a changé pour me dire qu'il y a une erreur DMA (CRC).

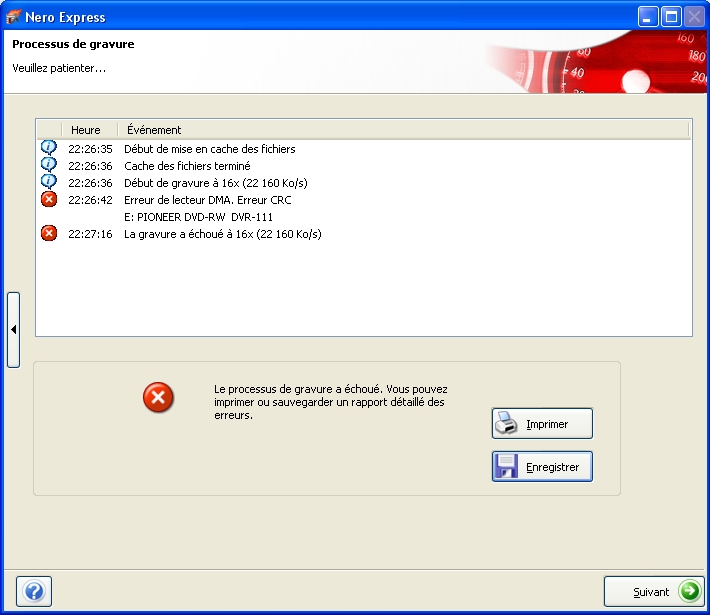

Message d'erreur rencontré en fin de page ou accessible ici => http://img517.imageshack.us/img517/8443/erreurbi4.jpg

voir log NERO ci-après.

Windows XP 5.1
IA32
WinAspi: -

NT-SPTI used
Nero Version: 7.7.5.1
Internal Version: 7, 7, 5, 1
(Nero Express)
Recorder: <PIONEER DVD-RW DVR-111> Version: 1.23 - HA 1 TA 0 - 7.7.5.1
Adapter driver: <IDE> HA 1
Drive buffer : 2000kB
Bus Type : default (0) -> ATAPI, detected: ?
CD-ROM: <PIONEER DVD-RW DVR-111 >Version: 1.23 - HA 1 TA 0 - 7.7.5.1
Adapter driver: <IDE> HA 1

=== Scsi-Device-Map ===
DiskPeripheral : Maxtor 6Y080L0 IdeChnDr Port 0 ID 0 DMA: On
DiskPeripheral : WDC WD3200JB-00KFA0 IdeChnDr Port 0 ID 1 DMA: Off
CdRomPeripheral : PIONEER DVD-RW DVR-111 IdeChnDr Port 1 ID 0 DMA: On
CdRomPeripheral : MSI CD-RW MS-8348 IdeChnDr Port 1 ID 1 DMA: Off

=== CDRom-Device-Map ===
PIONEER DVD-RW DVR-111 E: CDRom0
MSI CD-RW MS-8348 K: CDRom1
=======================

AutoRun : 1
Excluded drive IDs:
WriteBufferSize: 74448896 (0) Byte
BUFE : 0
Physical memory : 511MB (523760kB)
Free physical memory: 124MB (127460kB)
Memory in use : 75 %
Uncached PFiles: 0x0
Use Inquiry : 1
Global Bus Type: default (0)
Check supported media : Disabled (0)

10.6.2007
Compilation ISO
22:26:34 #1 Text 0 File SCSIPTICommands.cpp, Line 411
LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

22:26:34 #2 Text 0 File Isodoc.cpp, Line 6527
Iso document burn settings
------------------------------------------
Determine maximum speed : FALSE
Simulate : FALSE
Write : TRUE
Finalize CD : TRUE
Multisession : FALSE
Burning mode : DAO
Mode : 1
ISO Level : 2 (Max. of 31 chars)
Character set : ISO 9660
Joliet : TRUE
Allow pathdepth more than 8 directories : TRUE
Allow more than 255 characters in path : TRUE
Write ISO9660 ;1 file extensions : TRUE

22:26:35 #3 ISO9660GEN -11 File Geniso.cpp, Line 3334
First writeable address = 0 (0x00000000)

22:26:35 #4 Text 0 File Burncd.cpp, Line 3465
Turn on Disc-At-Once, using DVD media

22:26:35 #5 Text 0 File DlgWaitCD.cpp, Line 306
Last possible write address on media: 2298495 (510:46.45, 4489MB)
Last address to be written: 2178607 (484:08.07, 4255MB)

22:26:35 #6 Text 0 File DlgWaitCD.cpp, Line 318
Write in overburning mode: NO

22:26:35 #7 Text 0 File DlgWaitCD.cpp, Line 2912
Recorder: PIONEER DVD-RW DVR-111, Media type: DVD-R
Disc Manufacturer: MCC 03 - RG20
Disc Application Code: 64, Disc Physical Code: 193

22:26:35 #8 Text 0 File DlgWaitCD.cpp, Line 490
>>> Protocol of DlgWaitCD activities: <<<
=========================================

22:26:35 #9 Text 0 File ThreadedTransferInterface.cpp, Line 823
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 2178608 (2178608) = #2178608/484:8.8
relocatable, disc pos for caching/writing not required/ required
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 2178608 blocks [E: PIONEER DVD-RW DVR-111]
--------------------------------------------------------------

22:26:35 #10 Text 0 File ThreadedTransferInterface.cpp, Line 1026
Prepare [E: PIONEER DVD-RW DVR-111] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc fixated
Tracks 1 to 1: Idx 0 Idx 1 Next Trk
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 4461789184, ISRC ""
DAO layout:
===========
___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|______NWA_|_RecDep__________
0 | lead-in | 0 | 0x41 | 0 | 0 | 0x00
0 | 1 | 0 | 0x41 | 2178608 | 0 | 0x00
0 | 1 | 1 | 0x41 | 2178608 | 0 | 0x00
2178608 | lead-out | 1 | 0x41 | 0 | 0 | 0x00

22:26:35 #11 Text 0 File SCSIPTICommands.cpp, Line 209
SPTILockVolume - completed successfully for FCTL_LOCK_VOLUME

22:26:35 #12 Phase 24 File dlgbrnst.cpp, Line 1760
Caching of files started

22:26:36 #13 Text 0 File Burncd.cpp, Line 4298
Cache writing successful.

22:26:36 #14 Phase 25 File dlgbrnst.cpp, Line 1760
Caching of files completed

22:26:36 #15 Phase 36 File dlgbrnst.cpp, Line 1760
Burn process started at 16x (22 160 Ko/s)

22:26:38 #16 Text 0 File ThreadedTransferInterface.cpp, Line 2764
Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

22:26:38 #17 Text 0 File DVDR.cpp, Line 3070
Recording mode: Sequential Recording Mode

22:26:38 #18 Text 0 File DVDR.cpp, Line 3226
Start write address at LBA 0
DVD high compatibility mode: Yes

22:26:38 #19 SPTI -1066 File SCSIPassThrough.cpp, Line 179
CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1066)
Sense Key: 0x05 (KEY_ILLEGAL_REQUEST)
Sense Code: 0x24
Sense Qual: 0x00
CDB Data: 0xAC 00 00 00 00 00 00 00 00 64 00 00
Sense Area: 0x70 00 05 00 00 00 00 0E 00 00 00 00 24
Buffer x0956b640: Len x648

22:26:38 #20 Text 0 File Cdrdrv.cpp, Line 9288
---- DVD Structure: Physical Format Information (00h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 0 h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 0 h
Start sector number of the next Border-In: 0 h
Media Specific [16..63]:
00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!....
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

22:26:42 #21 SPTI -1502 File SCSIPassThrough.cpp, Line 179
CdRom0: SCSIStatus(x02) WinError(0) NeroError(-1502)
Sense Key: 0x04 (KEY_HARDWARE_ERROR)
Sense Code: 0x08
Sense Qual: 0x03
CDB Data: 0x2A 00 00 00 00 00 00 00 20 00 00 00
Sense Area: 0x70 00 04 00 00 00 00 0E 00 00 00 00 08 03
Buffer x22040040: Len x10000
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

22:26:42 #22 CDR -1502 File Writer.cpp, Line 301
DMA-driver error, CRC error
E: PIONEER DVD-RW DVR-111

22:26:42 #23 Text 0 File DVDR.cpp, Line 3446
EndDAO: Last written address was -1

22:27:16 #24 Phase 38 File dlgbrnst.cpp, Line 1760
Burn process failed at 16x (22 160 Ko/s)

22:27:17 #25 Text 0 File SCSIPTICommands.cpp, Line 254
SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

22:27:19 #26 Text 0 File Cdrdrv.cpp, Line 10529
DriveLocker: UnLockVolume completed

22:27:19 #27 Text 0 File SCSIPTICommands.cpp, Line 411
UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL


Existing drivers:

Registry Keys:
HKLM\Software\Microsoft\Windows NT\CurrentVersion\WinLogon\AllocateCDROMs : 0 (Security Option)

[Scaramanga]

J'aurrais pu aussi te préciser de mettre à jour le firmware de ton pioneer, il me semble que la dernière version est la 1.29...

Regarde aussi du coté du pilote du firmware, une erreur CRC indique un pb de transfert de donnée.

Tu as un DD qui n'est pas en mode DMA. ILfaut l'activer.

[fessal]

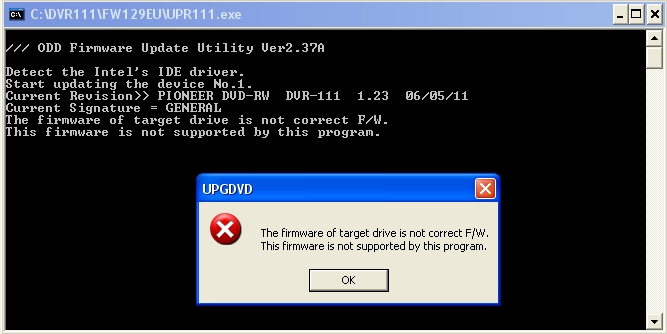

et bien même en tentant de mettre à jour le firmware j'ai un message d'erreur...
Y a pas un moyen de tout eraser et de remettre le firmware à jour?
Pour le DD, je ne pense pas que cela vienne du fait qu'un des disques ne soit pas en DMA, les données à graver sont dans le premier disque.
Je pense plus à un problème sur le graveur et/ou firmware avec le graveur. S'il y avait un moyen de forcer l'upgrade du firmware ou une astuce pour tout eraser pour reconstruire... (methode brutale mais qui fait parfois ses preuves lorsqu'il n'y a pas d'autres solutions que de jeter le matériel...)

[Scaramanga]

pas de Média dans le graveur ?

Sinon jette un coup d'oeil sur cette page :
http://wwwbsc.pioneer.co.jp/product-e/i ... 04r_e.html
